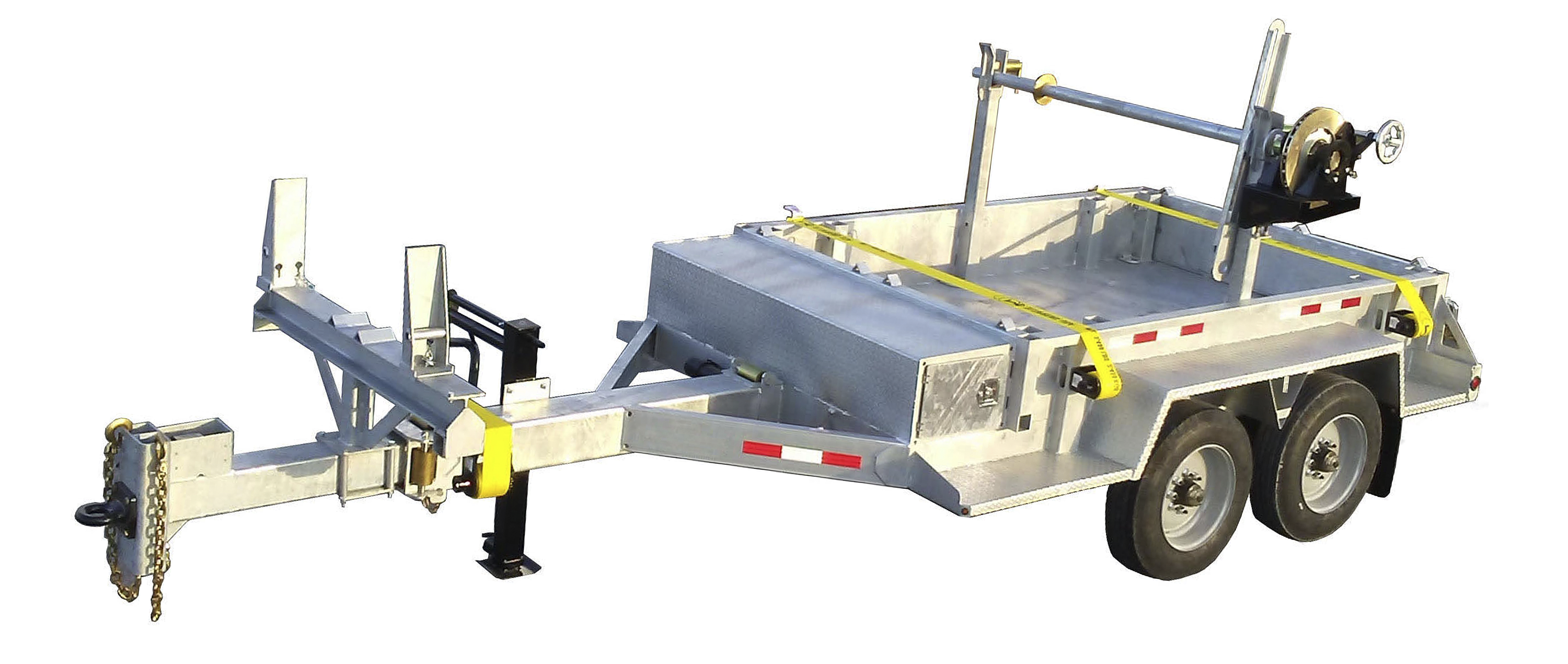

Combination Utility Trailer

STANDARD FEATURES
• Auto-locking Swing Out Reel Bar Retainer
• FMVSS / CMVSS Standard 108 LED Lighting
• Rear Red Clearance Lights
• Front Amber Clearance Lights
• All Lights Sealed & Grommet Mounted
• DOT Reflective Tape (ConspicuityTape)

PAINT
• I.M.P.A.C.T. Intense Metal pH ACID Cleaning Technology
• Hydrofluric, Sulfuric, Phosphoric ACID Bath
• Seams Caulked
• Rust Preventative 2-Part Epoxy Primer
• 2-Part Polyurethane Top Coats
• Standard Colors: Red, Black, White, and CAT Yellow

OPTIONS
• 3-Step Hot Dip Galvanizing (Includes 10 Year Structural Warranty)
• 12V Electric over Hydraulics w/ Solar Panel and Trickle Charger
• Fiber-Optic Cable Puller and Collapsible Reel Packages (Condux or GMP) with 11 HP Engine (Honda)
• Hydraulic Take-up Retriever (Rim Drive)
• Hydraulic Power Pack (11 HP Honda)
• 9″ Overspin Brake
• Toolbox
• Engine Cover
• Rubber or All Weather Grip Strut Wheel Chocks
• All Stainless Fasteners

GENERAL SPECIFICATIONS

Torsion Axle Suspension
• (2) 6K AXLES: 13,800 lbs. GVWR@ 15% Tongue Weight

Except Air Brakes
• (2)7KAXLES: 16,100 lbs. GVWR@ 15% Tongue Weight
• (2) 8K AXLES: 18,400 lbs. GVWR@ 15% Tongue Weight
• (2) 1 OK AXLES: 22,000 lbs. GVWR@ 15% Tongue Weight
All Final Payloads Based on Chosen Model and Options

Tires
• 6K Axle – (4) ST-235/80R16 LR-E Tires
• 7K Axle – (4) ST-235/80R16 LR-E Tires
• 8K Axle – (4) 215/75R17.5 LR-H Tires
• 1OK Axle – (4) 215/75R17.5 LR-H Tires

Overall Width
• 86″ (customizable)

Pole Seat Height
• 40″ (45″ with Fixed or Removable Pole Seat Option)

Cargo Beds
• 111″ L x 70″ W x 15″ H (customizable, see options)

Lengths
• 20′ / 25′ / 30′ Standard, Retracted to Extended Length
• 24′ / 31 ‘/ 38’ Customizable Locking Extension Lengths Available
